BRAND :HAIER BIOMEDICAL
Product Features
Remote Temperature Recording:
• The external temperature sensor measures the temperature, records and stores the measured temperature values automatically, and transmits them to the platform through GPRS, realizing remote platform monitoring.
Application Scenarios:
• It can be used for real-time monitoring of warehousing and distribution of food, medicine, vaccine, blood, reagents, biological products, biological sample tissue and other items. The application scenarios include refrigerated trucks, incubators, cold rooms, cold packs, refrigerated cabinets, refrigerators, freezers and so on.
Long communication distance
LoRa spread spectrum modulation is adopted for wireless communication, which works in sub-1 GHz band. With the characteristics of long communication distance, strong ability to pass through obstacles or walls, excellent anti-interference performance, no need to lay communication and power supply cables, user installation is
flexible and beautiful.
Local sound and light alarm
When the acquisition temperature exceeds the set domain value, or the acquisition node is not working normally, the local sound and light alarm can be realized through the collector configuration.
Micro-USB export local data
It is equipped with standard Micro-USB interface to cooperate with PC upper computer software for local data export, firmware upgrade and system parameter configuration.
Power supply mode
The collector works with battery power, and the gateway works with the external power through adapter. When the external power supply is off, the gateway works with standby battery power supply.
Pluggable aviation plug
1）The probe is inserted into the refrigerator porthole or laid in the cold room, and the recorder host can be removed separately for operation;
2）When the probe is broken or damaged, it is convenient to replace it separately;
3）Compared to the 3.5mm audio connector, the aviation plug is more robust and offers better electromagnetic protection.
Specifications
Model Sensor Measuring Function Battery Communication Display Local-storage
YB-HC600-01 One line (2m) digital sensor Range -40~80°C 3.6V/5400mAh LoRa LCD display, real-time display 60000 sets and it supports breakpoint continued transmission

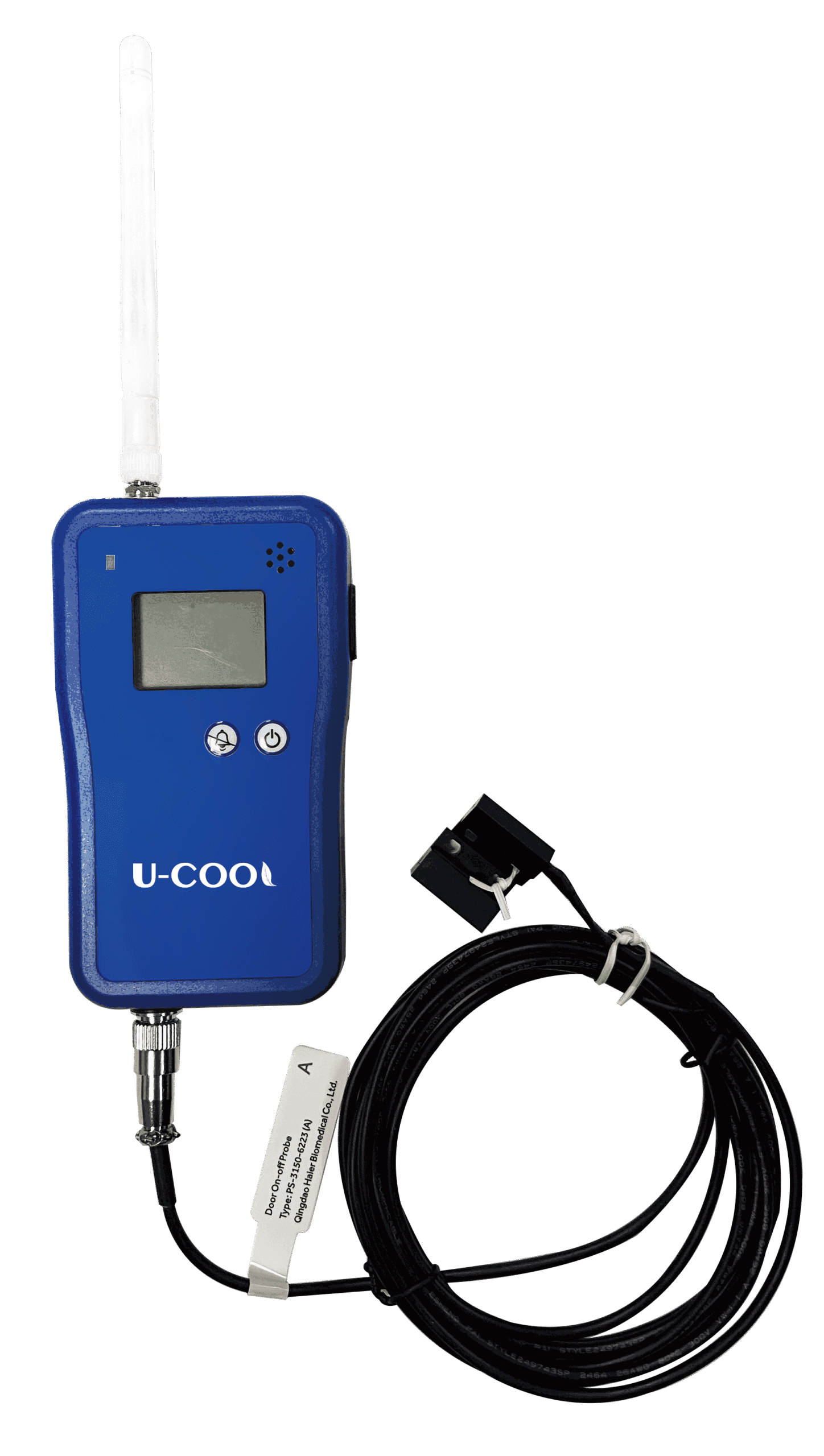

YB-HC600-02 One line (3m) Door open-close monitoring 3.6V/5400mAh LoRa LCD display, real-time display 60000 sets and it supports breakpoint continued transmission

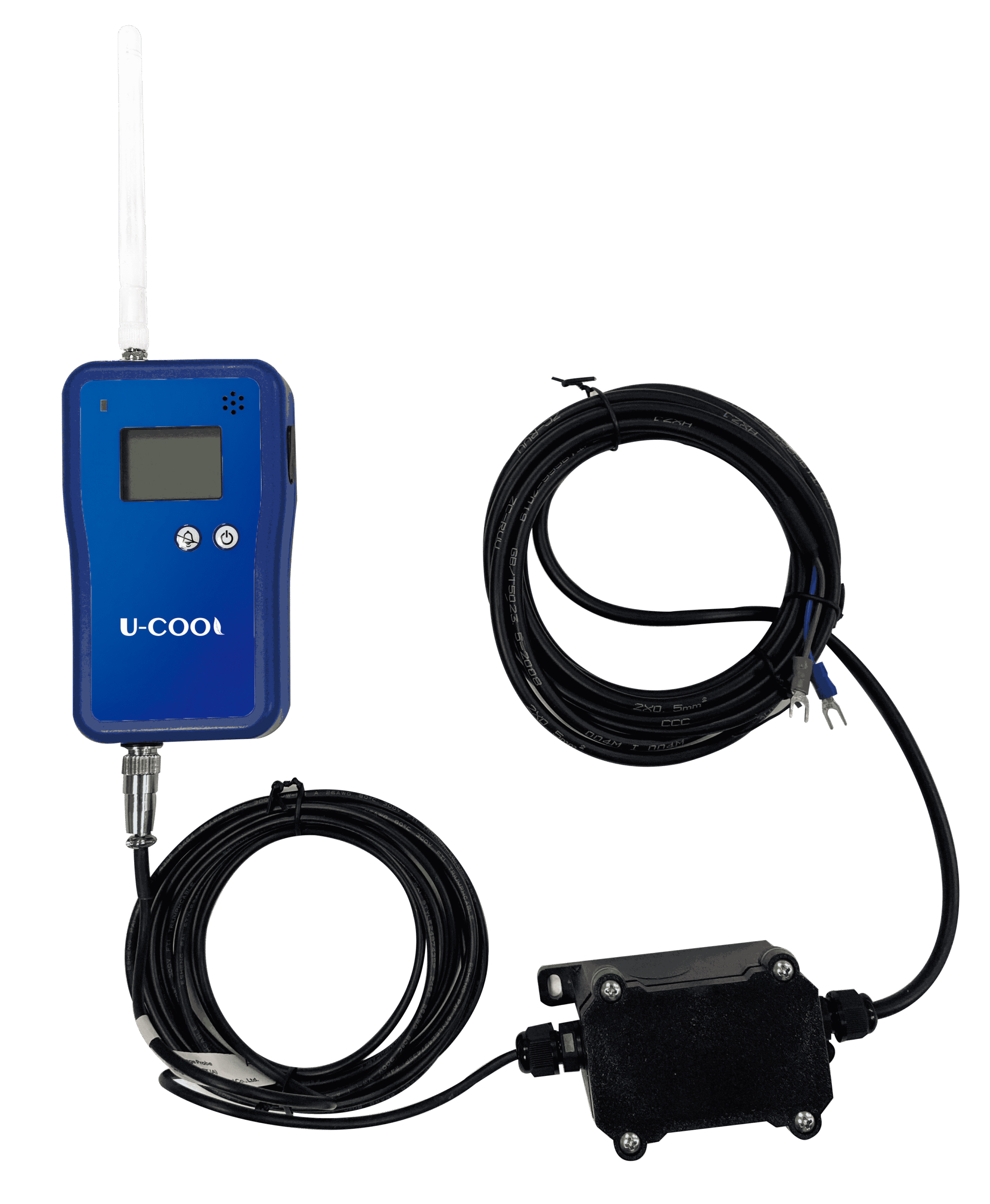

YB-HC600-03 One line (3+3m) Power supply monitoring 3.6V/5400mAh LoRa LCD display, real-time display 60000 sets and it supports breakpoint continued transmission

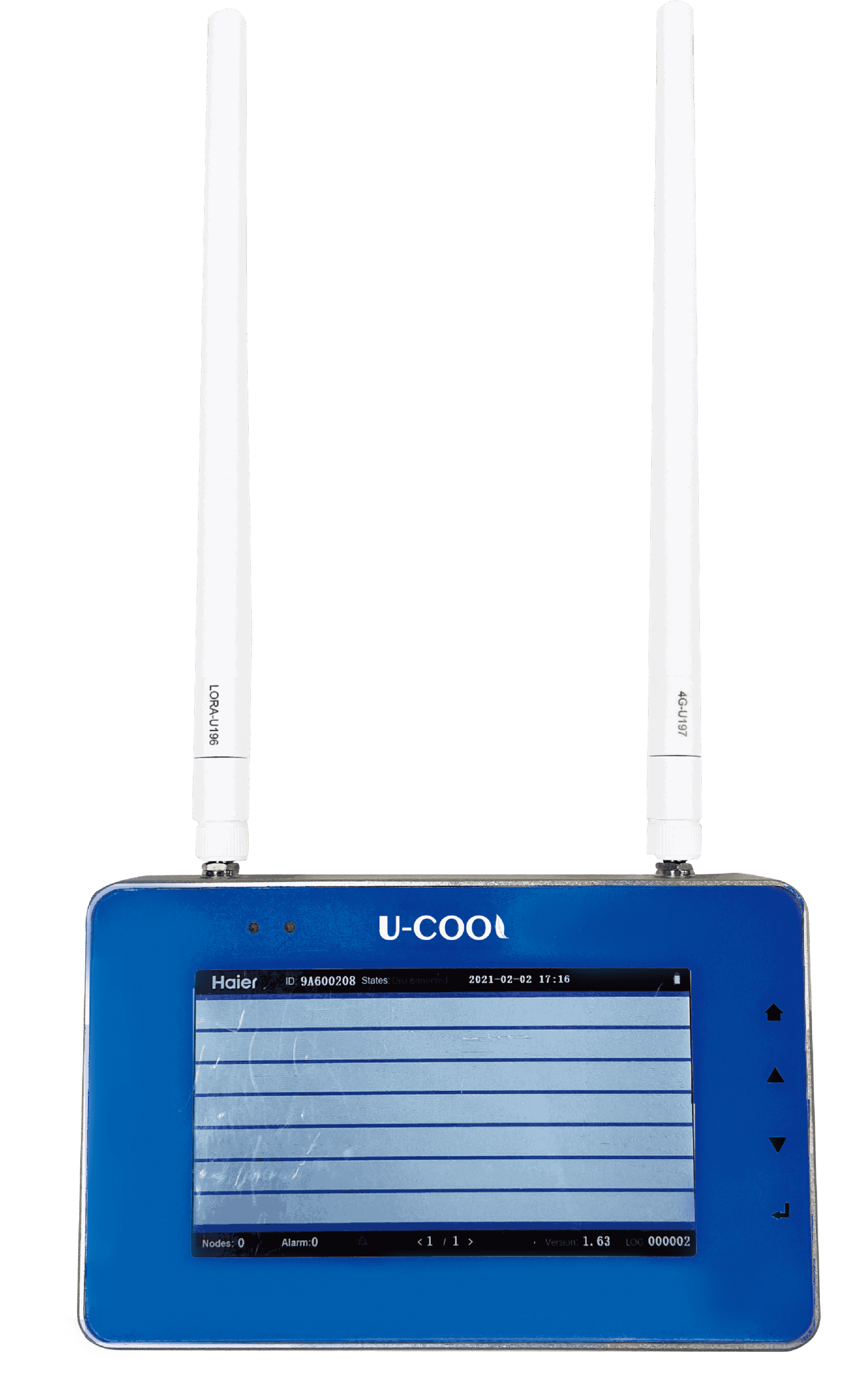

YB-HZ600-01 N/A 3.7V/10000mAh LoRa 60000 sets
