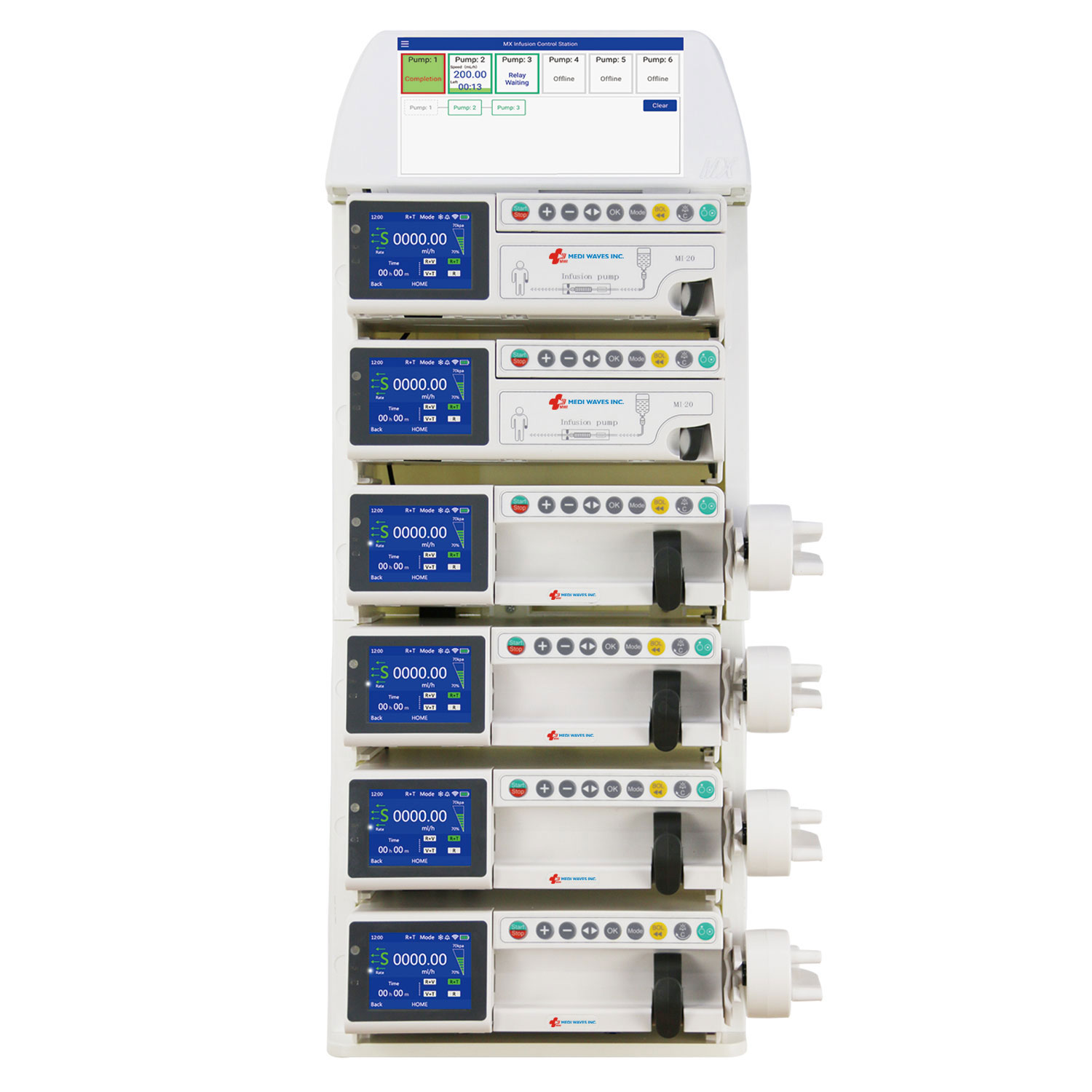

BRAND : MEDI WAVES
MODEL : MW
Description
Relayed Infusion Continuous infusion therapy with infusion relay.
Data Analysis Statistical analysis on flow rate, dosage, volume and etc.
Graphic presentation of analysis data.
Help to improve therapy quality.
7 – inch Display Built-in pad based on the most advanced Android OS.
0.25m² Stackable design, save valuable spaces.
Take as little as 0.25m².
Portable : With Quick handle, the pump works seamlessly between Workstation and portable configuration.
ICU Suspension Arm : Compatible with ICU suspension arm. Save floor space.
Centralized Monitoring : With Built-in wireless router, the MX infusion Workstation, MI-20 and MS-31 communicate via a high speed local network.
Power Adapter : One power supply to save power outlet for stackable configuration.
Tech Details
Specification
Compatible Pumps MI-20 Infusion Pump, MS-31 Syringe Pump.
Pump Amount 3, 4, 6, 7, 8, 9, Pcs.
Dimension and Weight
3 Pcs : 243 x 125 x 345 mm (W x D x H), 1.6kg.
4 Pcs : 243 x 125 x 427 mm (W x D x H), 1.86kg.
6 Pcs : 243 x 125 x 590 mm (W x D x H), 2.45kg.
7 Pcs : 243 x 125 x 672 mm (W x D x H), 2.71kg.
8 Pcs : 243 x 125 x 754 mm (W x D x H), 2.97kg.
9 Pcs : 243 x 125 x 835 mm (W x D x H), 3.2kg.
Pump Pole Dimension 520 x 540 x 1600 mm (W x D x H).
Pump Pole Weight 8.2 Kg.
Hardware Computer with 7-inch screen (optional)
Screen Size 7 Inch
Power Adapter A.C. Input power 100V ∼ 240V 50/60 Hz; D.C. output 15V / 2A.
Power < 20VA
Classification Class I, Type CF, IPX1
