Brand : CONTEC
Product Details:
Display Size 22 Inch
Type of display TFT
Brand MONARCH
Model MM 5012
Parameters Measured RESP, Temperature, NIBP, ECG, SPO2, PR
Suitable For Neonatal, Adult, Pediatric
No of Leads in ECG 5
12 Lead interpretation of ECG Yes
Display waveform of Respiration Yes
SPO2 Measurement Technique Nellcor
Type of SPO2 probe Reusable
NIBP Cuff Supplied Adult
Supplied Temperature Probe Skin
Systolic BP – low and high alarm Yes
Diastolic BP – low and high alarm Yes
Mean BP – low and high alarm Yes
Heart rate – low and high alarm Yes
SPO2 – low and high alarm Yes
Respiratory rate – low and high alarm Yes
Temperature -low and high alarm Yes
Type of alarm Audio

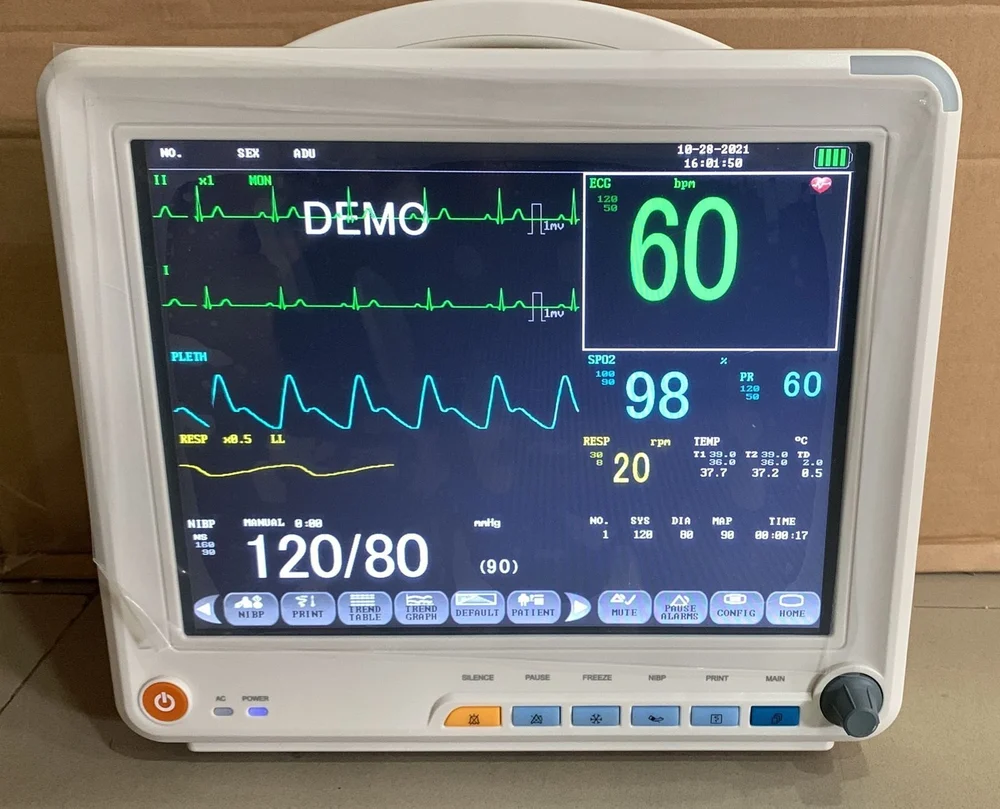

Introduction
The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V 50/60Hz, adopts 12.1′ color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.
Main Features
12.1′ TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech).
Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
All-round monitor for adult, pediatric and neonate.
With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
Finish all operations by keys and knobs.
Maximum 8-channel waveform synchronous display.
Display 7-lead ECG waveform on one screen, cascade ECG waveform display
Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
Heart rate variability (HRV) analysis function
NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
Drug concentration calculation and titration table functions.
One-touch printing of trend graph
Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
