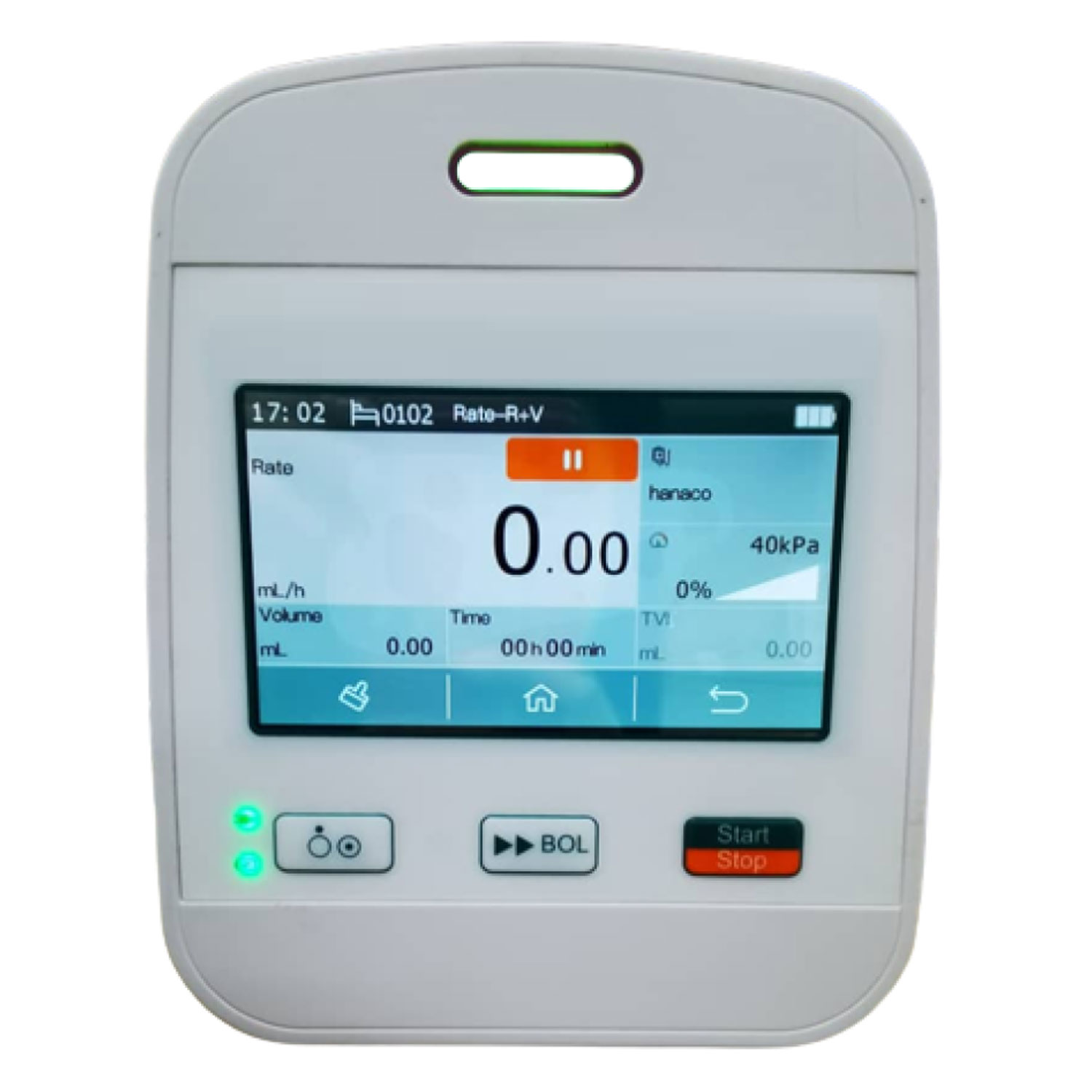

BRAND : MEDI WAVES INC.
MODEL :MW
Description
Compact and light weight design.
Soft key, easy to operate.
Top indicator light indicating.
Load directly the last infusion rate and volume.
Adjustable buzzer volume.
Three adjustable occlusion pressure settings.
Free flow protection.
Panel Lock.
Double CPU ensuring safe infusion.
Removable pump body for easy
Features & Functions
Infusion mode Rate mode
Flow rate range 0.1 ~ 1200ml/h, Micro mode : 0.1-99.9ml/h in 0.1 ml increments, 1-400drops/min
Remaining time 00h:00m It depends on the setting of VTBI and flow rate
Volume to be infused (VTBI) 0 ~ 9999 ml
Volume Infused (Σ) 0 ~ 36000 ml
KVO rate 1-5 ml
Infusion accuracy ±5%
Purge 600ml/h
Bolus rate 300-1200ml/h
Applicable infusion set A wide variety brands of infusion set
Air bubble detection Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure 3 adjustable occlusion pressure settings: low, middle and high
Alarms Visual and audible alarms : Door open, Air-In-Line, Occlusion, Infusion completion, Low Battery, Battery depleted, malfunction etc.
Battery Rechargeable lithium polymer battery, 7.4V,2100mAh. Can operate for more than 3 hours after fully charged at 25ml/h
Battery recharge time 10h with power on, 3h with power off
Power supply AC: 100~240V, 50/60Hz, DC: 12V ±1V
Classification Class l, type CF Px3
weight ≤1.4Kg
Dimension 145x100x120 mm (L x W x D)
