Horizontal Bench-top Autoclaves

BRAND :HAIER BIOMEDICAL

Product Features

As a type of high pressure sterilizer, it takes steam as its sterilization medium which is fast, safe and economic .They are common used in scientific institutions or R&D institution to make the sterilization for wrapped or unwrapped instrument, fabric, utensils, culture medium, unsealed liquid, etc.

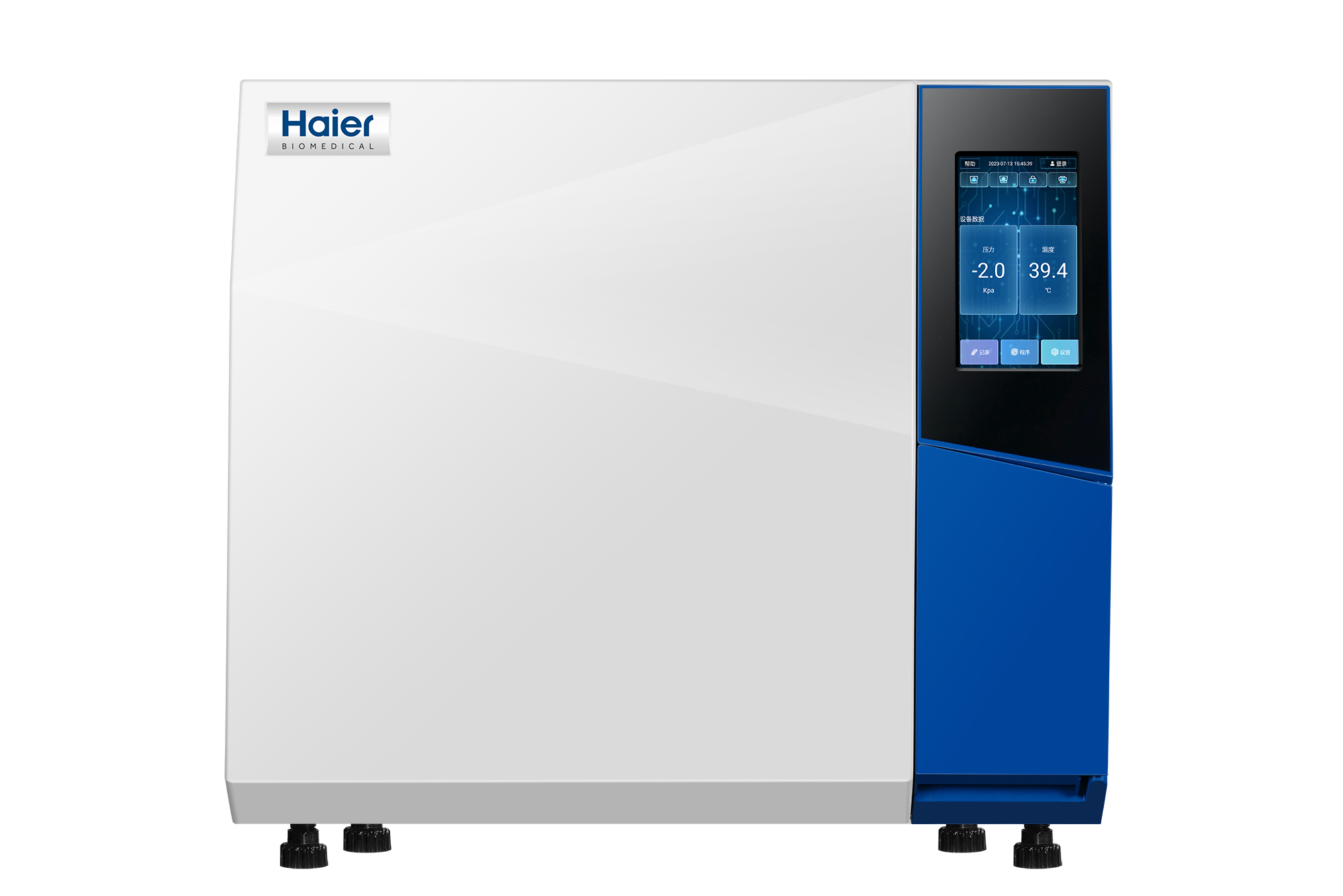

4- inch LCD color screen
4- inch LCD color screen makes graphics and figures clear at a glance, easy to use.

HRTM-18/23
Optional-intelligent IoT Module to Enable the Mobile APP to Monitor the Running State of the Autoclave

HRTM-18/23
Triple Protection of Temperature and Pressure Monitoring, Electronic Lock and Mechanical Safety Devices
When the set pressure is exceeded, the safety valve opens automatically to release the pressure.

HRTM-18/23
New Technology
Adopts a new generation steam generator to increase the saturation of the saturated steam which ensures thorough sterilization.

HRTM-18/23
Optimized Total Operating time
A vacuum forced cooling system and under pressure blast drying system ensures rapid sterilization, greatly shortening the sterilization time, which improves the drying effect.

HRTM-18/23
High Degree of Security by Extensive Safety Devices
Automatic over-temperature protection, over-current, over-voltage protection and leakage protection, anti-drying protection, sensor disconnection detection, door safety protection, and full protection thermal insulated door cover.

Specifications
Model Power Supply (V/Hz) Interior Dimension(mm) Maximum Temperature(ºC) Maximum Pressure(Mpa)
HRTM-45 220-240~50/60 φ316*615 150 0.28
HRTM-18 220-240~50/60 φ247*350 150 0.28
HRTM-23 220-240~50/60 φ247*450 150 0.28
