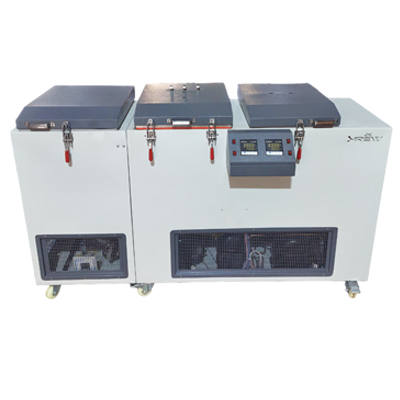

Dual Circulation Bath with Heating and Cooling

BRAND : KREW INSTRUMENTS

In our recent R&D project, we designed and developed a Dual Circulation Bath with Heating & Chiller to meet the specific needs of an R&D centre of Railway workshop in Pune. The project involved complex requirements, and we successfully delivered a solution that maintained the desired temperature with the applicable solvents, overcoming multiple technical demands with precision.

Feature Specification / Description
Model Type Standard Model: Inner: Stainless Steel – 304, Exterior: MS sheet duly powder coated
GMP Model: Inner and Outer Body: Stainless Steel 304
Temperature Range Water Bath: -20 to -45°C
Oil Bath: 5°C above ambient to 200°C
Heating / Control Fitted with immersion type heater, digital temperature controller cum indicator
Accuracy ± 3°C (Water Bath), ± 1°C (Oil Bath)
Power 230 V AC
Circulation Fitted with circular pump with stirrer to re-circulate oil at constant temperature
Cooling Chiller for oil cooling at the ambient temperature
