Brand Contec
Product Details:
Minimum Order Quantity 2 Piece
Number Of Channels 12 Channels
Operating Mode Automatic
Weight 5KG
Defibrillation Protection Yes
Filters Type Emg Filter
Built In Printer Yes

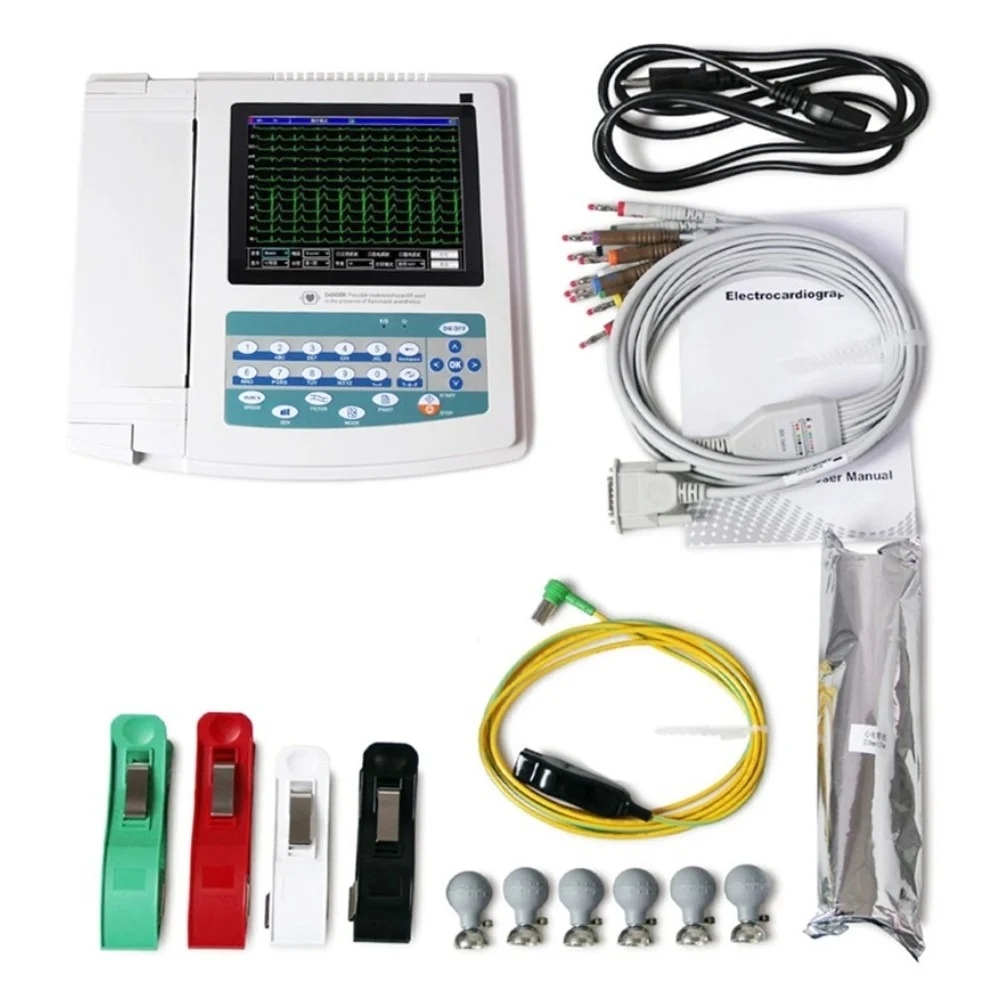

Accessories User Manual And Warranty Card, Power Cord, Patient Cable
Model Name/Number ECG1200g
Digital Display Yes
Specifications:
Input Way: Floating Defibrillation Protection
Lead: Standard 12 Leads
Patient Leak Current: <10 µA
Input Independence: ≥50 M
Frequency response: 0.0 Hz~150 Hz(-3dB)
Time constant: Time constant >3.2s
CMRR: >60dB, >100dB (Adding filter)
EMG Interference filter: 35 Hz_ -3d B
Recording Way: Thermal Printing System
Recording Paper Specification: 210 mm(W) x 20 mm(L) high-speed thermal paper
Paper Speed: Auto record: 25mm/s, 50mm/s, error ± 5 %
Rhythm record: 25mm/s, 50mm/s,error ± 5 %
Manual record: 5mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s error ± 5 %
Sensitivity Selections: 5, 10, 20, 40 mm/mV, error ± 5 % standard sensitivity is 10 mm/mV 0.2 mm/mv,
Auto Record: Record Setup according to auto record format & mode, automatically change leads measuring & analysis
Rhythm Record: Record Setup according to auto record format & mode, automatically change leads measuring & analysis
Manual Record: Record Setup according to manual record format, manually changing leads
Measurement Parameters: HR, P-R interval, P Duration, QRS duration, Q Interval, Q-Tc, P Axis, T Axis, R(VS), S(V), R(V5)+S(V1)
Product Safety Type: Class 1 CF applied part ; there is defibrillation & placing protection circuit in
Enduring Polarization Voltage: ± 5500mV
Noise Level: _< 15u VP-p
Size: 334 mm(L) x 320 mm(W) x 85 mm(H)
Power Supply / frequency: AC: 100-240V, 50/60 Hz DC :14.8 V, 3700 mAh rechargeable lithium battery
