Voltage Stabilizer

BRAND :HAIER BIOMEDICAL

Product Features

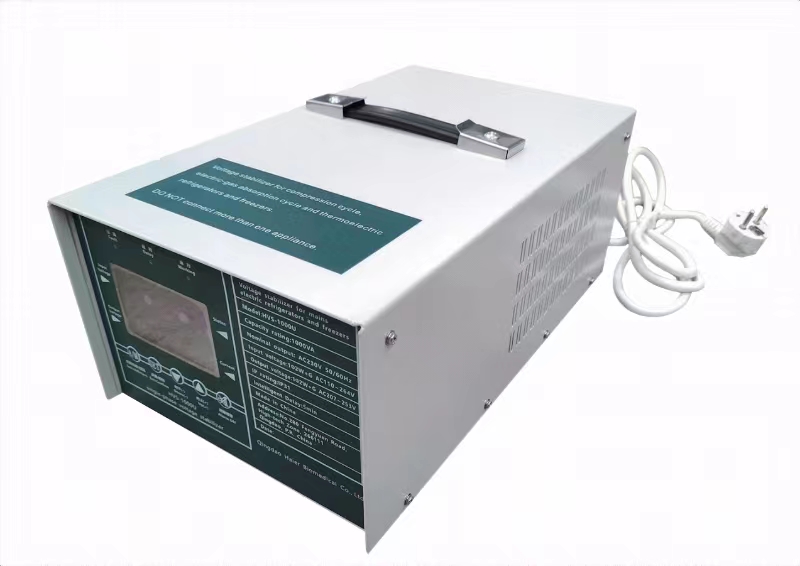

The HVS-1000U voltage stabilizer is developed, designed and manufactured according to the latest PQS standards. The product consists of single-phase multi-tap dry type transformer, relay integrated board, single-chip intelligent detection board and supporting display , external protection and control circuit. The voltage stabilizer central control system adopts single-chip intelligent control, which highlights the safety, reliability and stability o f the voltage s tabilizer under bad power s up ply conditions. With intelligent control, high safety, high reliability and other significant advantages! IoT modules can be selected to remotely view the power supply and power quality analysis, and achieve remote alarm of abnormal situations

Fundamental Functions
Requires no maintenance

Microprocessor controlled stabilisero

Very wide input withstand range (0-500V)

Meet the latest WHO/PQS standards (VS01.6)

With LCD screen, display input/output/working statusinformation

Zero current changeover

Fault record/protection record, can be viewed locally

Frequency real-time detection, out ofrange protection

Record the number ofrelay actions, which can be viewedlocally

The loT function is optionalto remotely view and analyzepower supply information

The product integrates a microcontroller-based intelligent detection board and a display, and the operation panel has been equipped with parameter setting buttons so that users or technicians can modify the working parameters of the voltage stabilizer

Alarm and protection records can be viewed through the screen

Specifications
Model Output Voltage Range (V) Input Voltage Range (V) Continuous Input Withstand Range (V) Input Frequency (Hz) Packing Dimension (W*D*H)(mm) Gross Weight (kg)
HVS-1000U 230 ±10% 110-264 AC ≤500 AC 47-63 450*370*300 11
