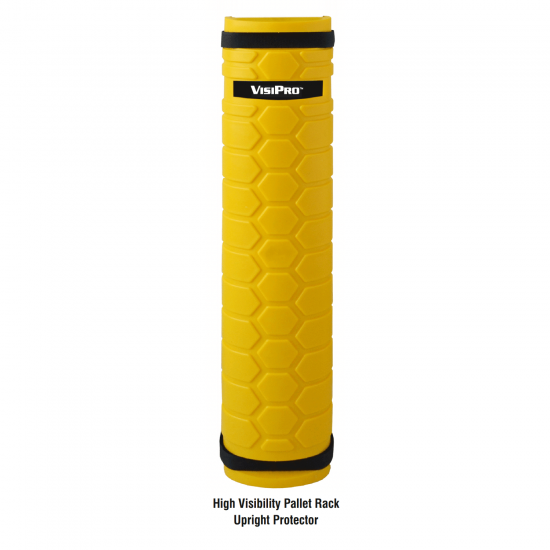

VISIPRO Pallet Rack Protector

BRAND : ALKON

DESCRIPTION

The VISIPRO Pallet Rack Protector is a low cost guarding solution for the low risk intermediate uprights within the pallet rack structure.

Low Cost Pallet Rack Protector.
Tough Impact Resistant.
High Visibility Yellow Colour.
Energy Absorbing Inner Pad.
Easily Fitted and Removed.
No Floor Fixings Needed.
Able to withstand temperature as low as -30 °C.
Certified to Impact Loads specified in European Standard EN 15512-2009.
Made from Polyethylene Compounded Plastic.

ALKON VISIPRO CABLE TIE
Art No : AVQ.
Std. pack : 50 pcs. per ctn.
Two cable ties required for each protector. Additional cable ties can be Ordered separately.
Size : 610mm (W) X 16mm (H)
Made from Nylon plastic.

Intermediate Uprights
Frontal Impact
Struck by Pallet
Low Risk
Low Cost Protection

Corner Uprights
Frontal and Side Impact
Struck by Fork Lift
High Risk
Independent Steel Guard

Specifications
ART NO : DESCRIPTION : STD. PACK

AVS1 : VISIPRO Rack Upright Protector – 75mm (W) X 500mm (H)
For Rack Uprights from 50mm To 63mm width. : 30

AVS2 : VISIPRO Rack Upright Protector – 88mm (W) X 500mm (H)
For Rack Uprights from 63mm To 76mm width. : 24

AVA :  VISIPRO Rack Upright Protector – 95mm (W) X 500mm (H)
For Rack Uprights from 70mm To 83mm width. : 24

AVB :  VISIPRO Rack Upright Protector – 104mm (W) X 500mm (H)
For Rack Uprights from 79mm To 92mm width. : 21

AVC :  VISIPRO Rack Upright Protector – 117mm (W) X 500mm (H)
For Rack Uprights from 92mm To 105mm width. : 18

AVD :  VISIPRO Rack Upright Protector – 130mm (W) X 500mm(H)
For Rack Uprights from 105mm To 118mm width. : 18

AVE  : VISIPRO Rack Upright Protector – 143mm (W) X 500mm (H)
For Rack Uprights from 118mm To 131mm width. : 15

AVF  : VISIPRO Rack Upright Protector – 155mm (W) X 500mm (H)
For Rack Uprights from 130mm To 143mm width. :      12

AVG  : VISIPRO Rack Upright Protector – 170mm (W) X 500mm (H)
For Rack Uprights from 143mm To 156mm width. : 10
