Product Details:
Brand : BHARAT MEDICA
Parameters : NIBP
Screen Size : 12
Display Type : LCD
Power Source : Electricity
Voltage : 220 V
Suitable for : Pediatric, Adult, Infant, Neonatal
Measurement Site : Upper Arm
Lead Selections : aVF
Features : Spo2,NIBP,Pulse Rate,Respiration,ECG & Temp
Resolution : High Resolution
Pixel Pitch : 800×480

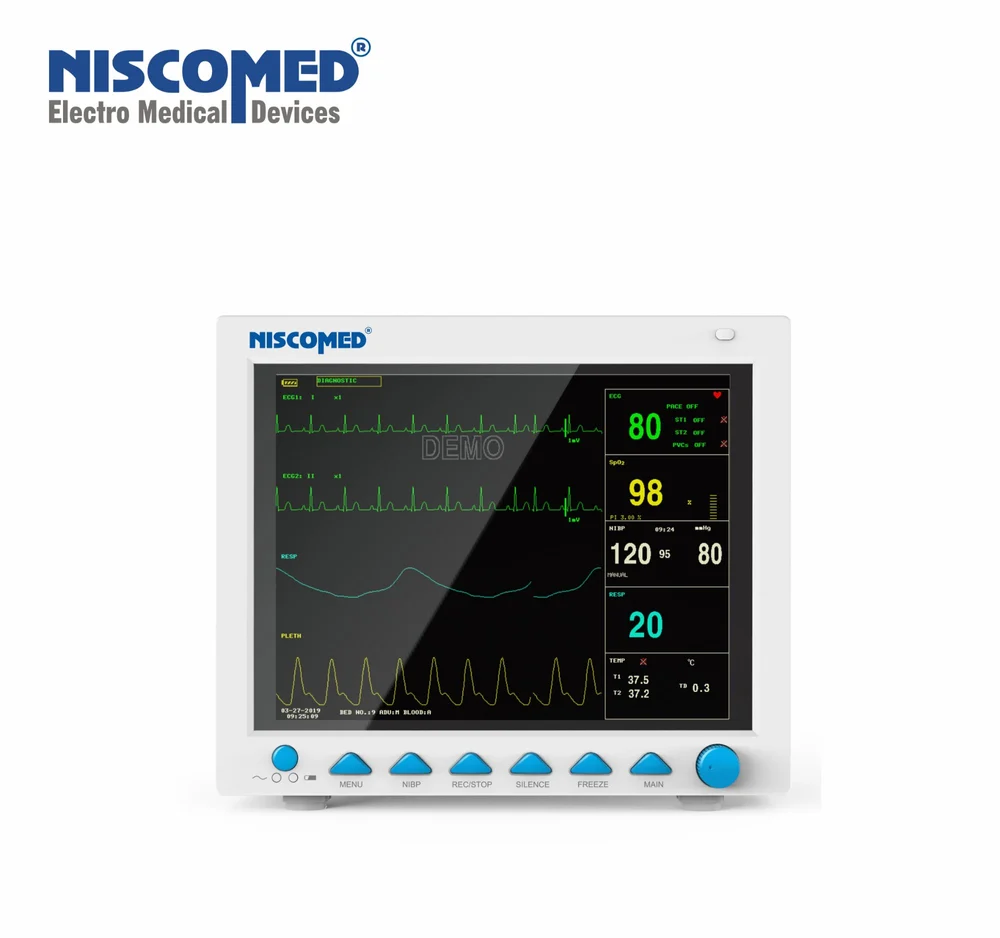

This Five Parameter Monitor (5 Para) is conventional equipment that finds its application in Arrhythmia analysis and S-T segment analysis ensuring high level of accuracy. This ensures the ECG waveforms of 7-leads display on the same screen. Multipara Patient Monitor suitable for adult, paediatric and neonatal patient this equipment is net-workable with central monitoring system.
Features:
High resolution 12.1” color TFT display
Lightweight, compact and portable
ECG, SPO2, NIBP, RESP, 2-TEMP PR
32 second full disclosure waveform review
500 NIBP measurement data can be storage and recall
Data and waveforms color be adjustable

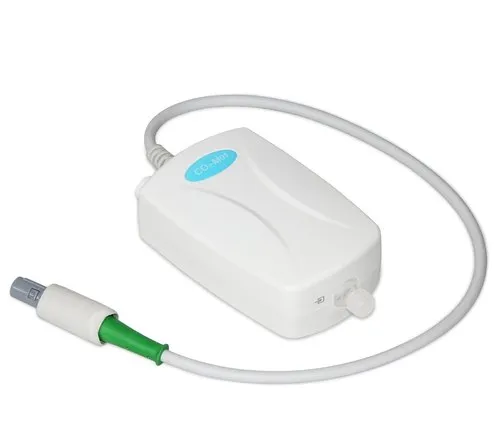

Optional 2-IBP, ETCO2, and thermal printer

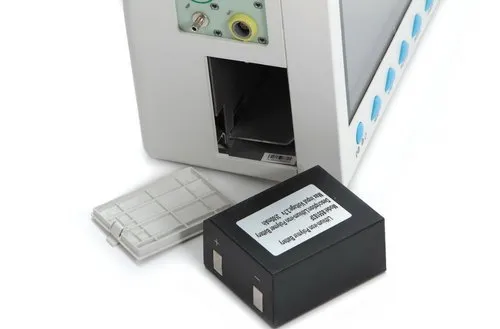

Built-in rechargeable lithium battery
ECG waveforms of 7-leads display on the same screen
72 hours graphic and tabular trends of all parameters
72 alarm events of all parameters recall
Arrhythmia analysis and S-T segment analysis
Specifications:

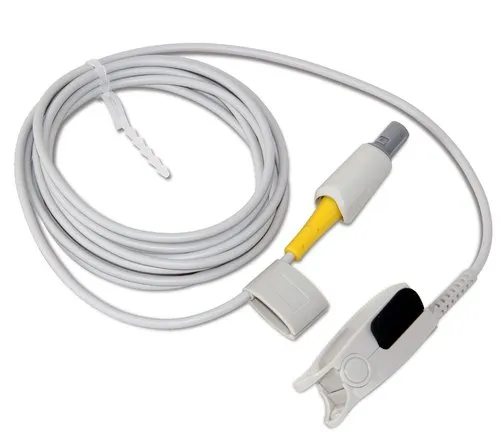

Measurement range: 0-100%
Accuracy: ± 2 digit (70 – 100% ); 0-69% unspecified
Display: 8.4” Colour TFT Display
Sweep Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
Standard configuration:
ECG, NIBP, SPO2
Audible and visual alarms with adjustable alarm ranges
Net-workable with central monitoring system
Suitable for adult paediatric and neonatal patient
Basic parameters (ECG, SPO2, NIBP) in a durable case for bedside monitoring and transport monitoring
Powerful data management and storage capacity

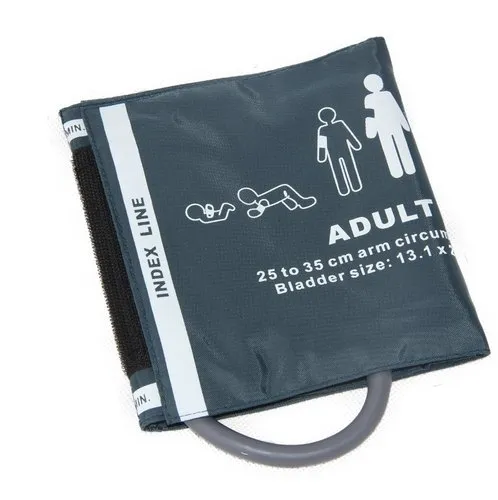

NIBP:
Operation models manual / automatic / STAT
Method oscillometry
Measurement unit mm Hg / K Pa selectable
Over pressure protection provided
Measurement types systolic, diastolic, mean

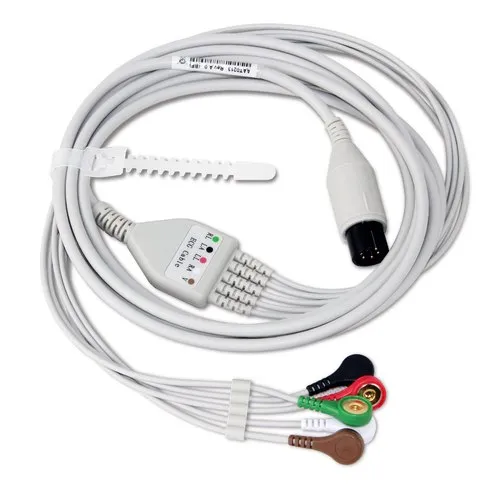

ECG:
Alarm events recallable
S-T detection YES, Arrhythmia analysis available
Accuracy: ± 1 bpm or ± 1%, which is greater
Lead type 5-lead
Input RA, LA, LL, V
Protection withstand 4000 VAC/50 Hz Voltage in isolation against electrosurgical and defibrillation
Alarm provided, audible and visual alarm
