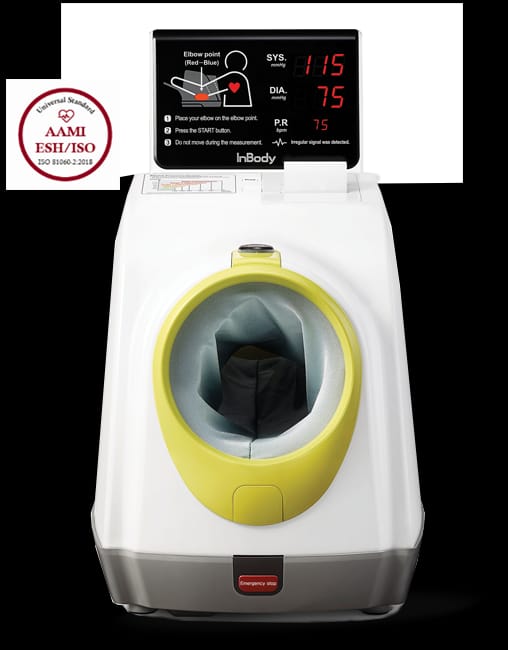

Kiosk-type Blood Pressure Monitor [BPBIO750]

 BRAND  : InBody

The moving cuff and the elbow sensor induce correct measuring posture.

• Quick Self-Measurement

  With an intuitive design and voice guidance, users can measure their blood pressure in 45 seconds just by pressing the “Start” button.

• Contact-free

  To enhance sanitary testing conditions, the BPBIO 750 is available with a disposable cuff barrier.

• Clinically validated

  The accuracy of BPBIO750 is clinically validated according to the AAMI/ESH/ISO protocol.

  Specifications

  • Measurement method

    Oscillometric method

    Range of measurement

    Pressure: 0~300 mmHg, Pulse: 30~240 bpm

    Degree of precision

    Pressure: ± 3 mmHg, Pulse: within ± 2%

    Measurement time

    Approx. 30 seconds on average (20-50 seconds depending on the pulse and blood pressure value)

    Applicable arm circumference

    17~42 cm

    Display type

    7-Segment LED

  • Printer

    High-speed thermal printer

    Dimensions

    Approx. 299 (W) × 547 (D) × 485 (H) mm

    Weight

    Approx. 7.1 kg

    External interface

    RS232C (USB compatible when USB dedicated cable is used)

    Power source

    AC 100~120 / 200~240V, 50 / 60Hz, 36VA

  • Optional items

    Dedicated desk, height-adjustable dedicated chair

    Voice guidance

    Guide for self measurement

    Motion sensor

    A sensor to detect human presence in front of device

    Start/Stop button

    Two Start/Stop buttons in the front and back side of device

    Emergency stop button

    Emergency stop button in the front side of device
