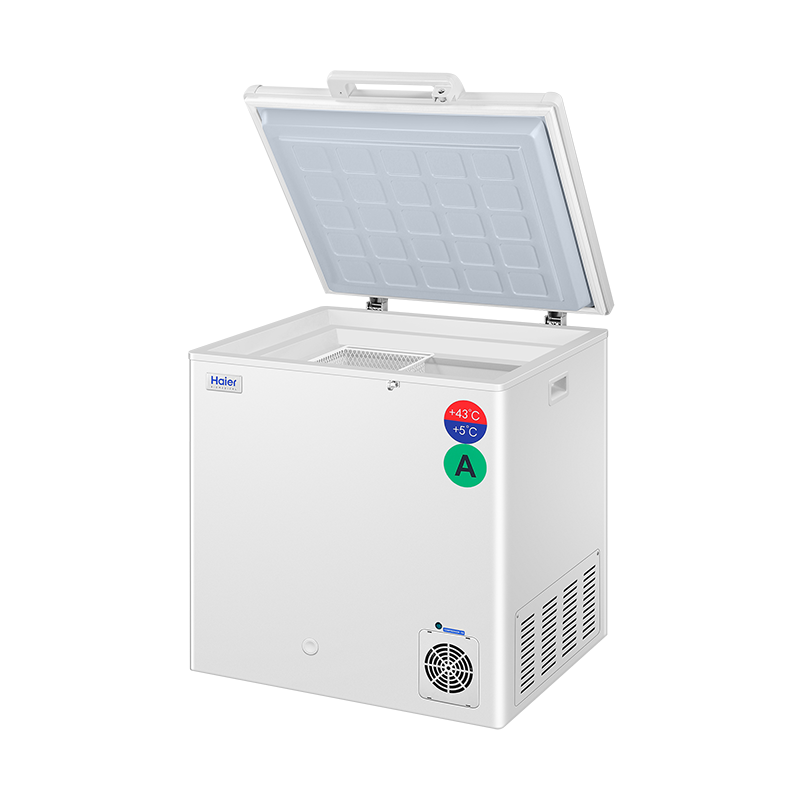

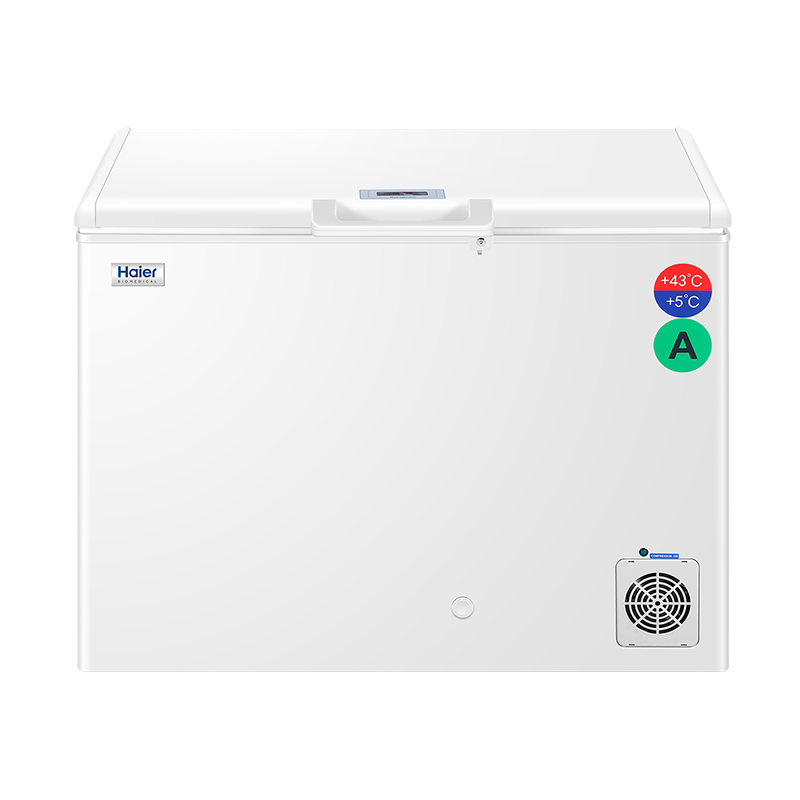

Ice-Lined Refrigerator(Chest)

Ergonomic Design
● Safety lock for unauthorized access control

● Equipped with storage basket, easy-reach retrieval of sample

● Low noise

● Aluminium and stainless steel chamber interior, corrosion-proof and easy to clean

● Equipped with handles on both sides of the cabinet, easy to move

Ice-Lined Refrigerator(Chest)
Advantages
● The refrigerating chamber and freezing chamber both have the separate refrigeration systems to ensure safe vaccine storage

● Green and environment-friendly

● Microprocessor control, solar powered display panel shows refrigerator and freezer interior temperature, refrigerator temperature range is 2~8°C, freezer temperature is less than -10°C

● Cooling chamber with water tank maintains interior temperature, extending the holding time when power is off

● Cooling chamber meets the A level WHO requirements for anti-freezing protection

● Patented technology, better temperature uniformity

● Wide working ambient range, will function normally within an ambient range of 5-43°C

Specifications
Model Cabinet Type Power Supply (V/Hz) Gross Volume (L/Cu.Ft) Holdover Time at 43℃ Temperature Vaccine Storage Capacity (L/Cu.Ft)
HBCD-90 Chest 220～240/50 74/2.6 63hrs48mins 2-8,＜-10 30/1.1
HBC-80 Chest 220～240/50 80/2.8 59hrs58mins 2-8 61/2.2
HBC-150 Chest 220～240/50 150/5.3 60hrs50mins 2-8 122/4.3
HBC-260 Chest 220～240/50 260/9.2 62hrs 2-8 211/7.5
