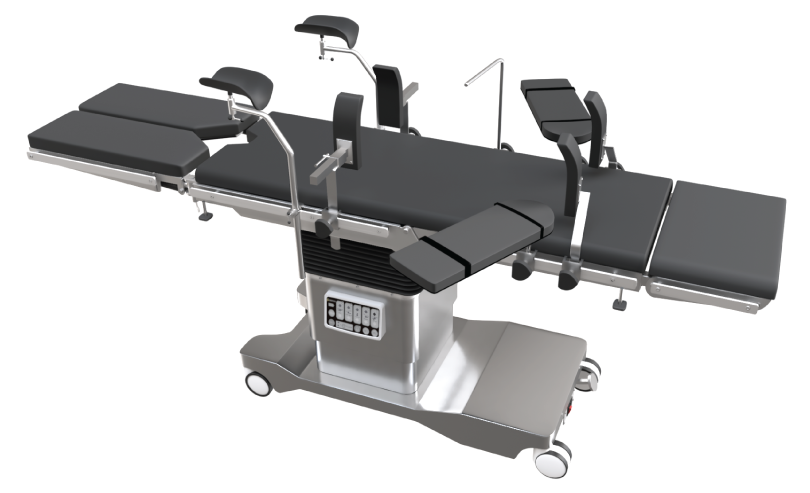

HYBRID EHO Electro-Hydraulic Surgical Table

Equipped with advanced features

Salient Features

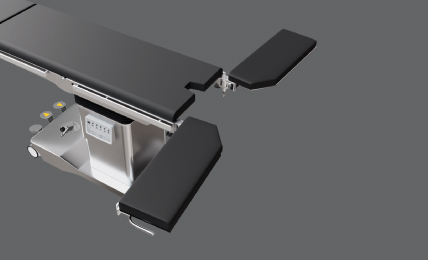

Split Leg Section
Stainless Fitting
Detachable : head, leg & pelvic section
In built kidney bridge
Five sectional radio – Translucent Top

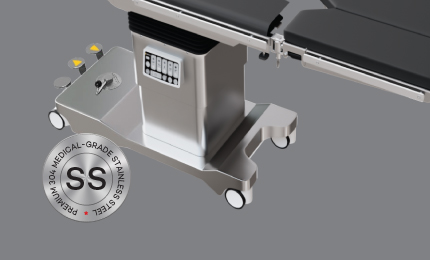

Base & Cover mode of attractive, easy to clean Stainless Steel
Sophisticated mechanics provide smooth, step less articulation of the table top for precise patient positioning.
Standby Battery Back-up with recharging circuit.
Modular design table top tailored for various surgical discipline needs. The easy click new mounting point enables the table adapted to wide variety of surgery and patient’s height, waterproof design Mattress.
Weight load capacity of 300kg ensures safety and stability.
Head and Leg Section operated through Gas spring
Longitudinal Slide offers up to 250mm of movement for C-arm access without patient repositioning.

Technical Specifications

Length of Table  : 2000 mm
Width of Table Top :  540 mm
Height of Table ?:  750 mm to 1000 mm
Trendelenburg :  25°
Reverse Trendelenburg  : 25°
Lateral Tilt :  20°
Back Section Up/Down  :M 80°/30°
Head Section Up/Down :  30°/55°
Leg Section  : 0°-90°
Floor Locking System Center Floor : Locking By Single Foot Lever
