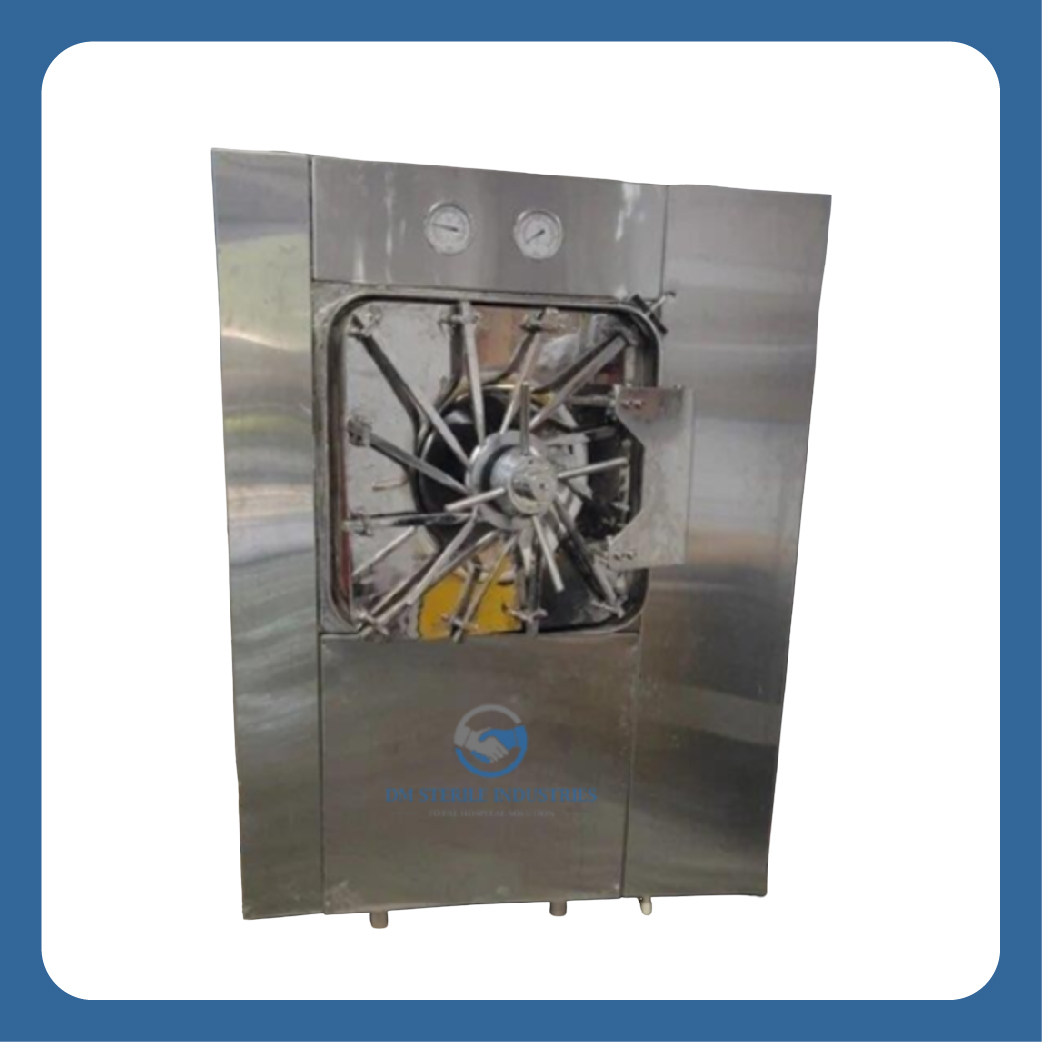

Fully Automatic Horizontal Rectangular Steam Sterilizer Machine

BRAND : DM STERILE INDUSTRIES

Specification: –

User friendly control system with PLC for reliable and effective sterilization.
Color touch screen display for simple operation and excellent process visualization
Safe stainless-steel doors with redial locking arrangement
Thermal printer for comprehensive documentation of Every Batch
Electrical system designed as per international standers with highest level of safety.
Stainless-steel Pipeline for Long Life and Superior Hygiene
Automatic Pneumatic Valves with non-Corrosive body for effortless operation.
One-piece temperature and pressure resistant silicon gasket.
Insulated chamber and steam generator for minimal heat loss and high energy conservation.
Energy efficient electric steam generator with automatic pressure control switch.
Optional Boiler dozing system with intelligent level control for feeding RO water in the steam generator.
High-capacity vacuum pump for effective air remoFval and excellent draying.

Technical Specifications
Model Inner Dimension Liter Heater Load
DMSI HRFA-180 18” x 18” x 36” 180L 18 kw
DMSI HRFA -240 18” x 24” x 36” 240L 18 kw
DMSI HRFA -320 24” x 24” x 36” 320L 18 kw
DMSI HRFA -430 24” x 24” x 48” 430L 18 kw
DMSI HRFA -540 24” x 24” x 60” 540L 24 kw
DMSI HRFA -650 24” x 24” x 72” 650L 27 kw
DMSI HRFA -1000 30” x 36” x 60” 1000L 27 kw
