Applicable to biological research, medical laboratories for drying of biotechnological and pharmaceutical products, e.g. tissues and tissue extracts, bacteria, vaccines, and sera, also suitable to food research, chemical industry and other related scenarios for efficient lyophilization of samples.
Automatic parameter storage
Intelligent storage of the freeze-drying parameters, without setting them separately each time

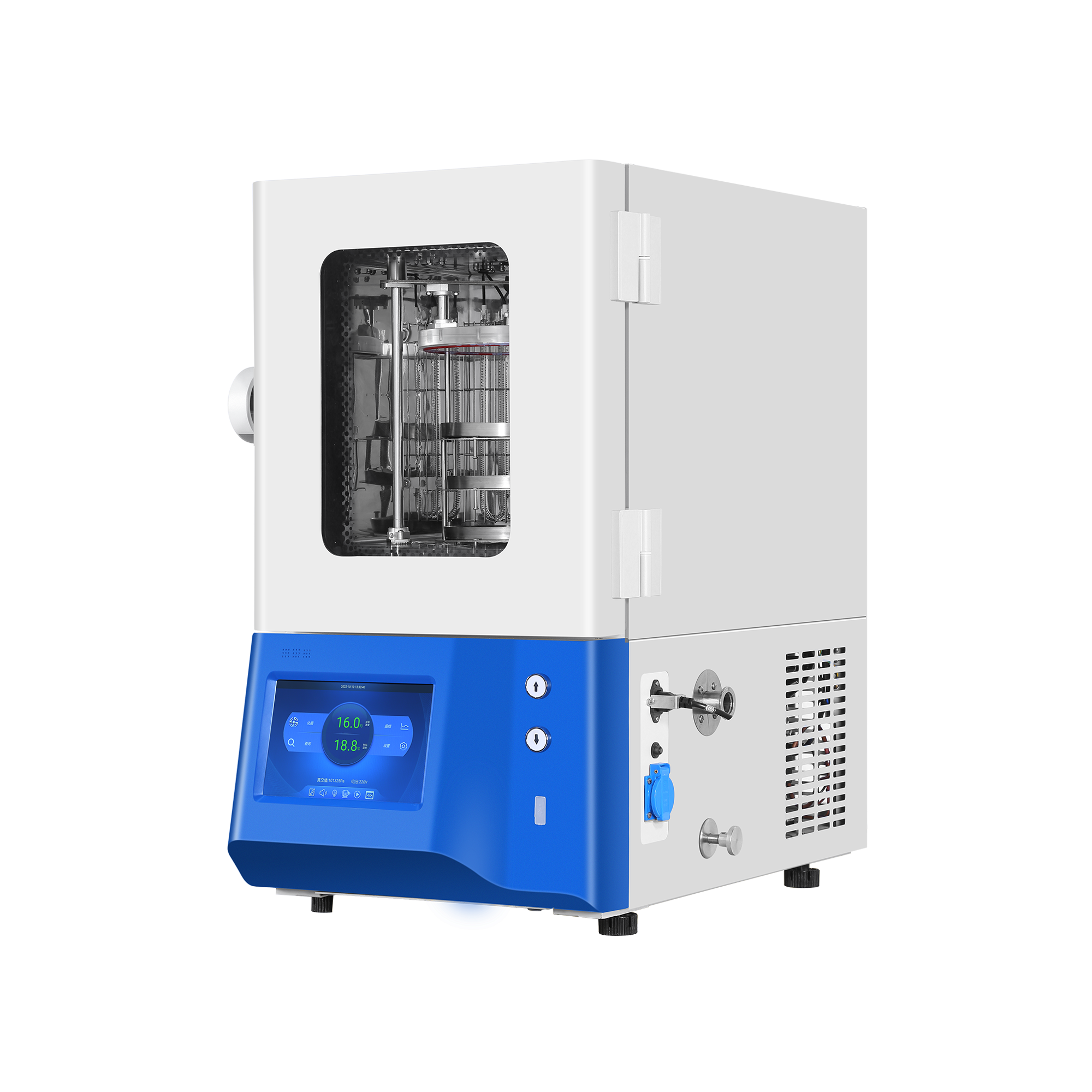

DG-65Z04-10A
The integrated design and totally enclosed environment make the sample pollution-free
The whole working cabin is closed, the freeze-drying process is isolated from the outside environment
DG-65Z04-10A
Multiple alarm functions
Multiple alarms including cold trap cooling overtime, vacuum pump oil replacement reminder, temperature sensor fault/cold trap temperature sensor fault, vacuum sensor fault, condenser sensor fault, ambient temperature sensor fault, abnormal refrigeration, motor overcurrent, condenser dirty blockage, vacuum alarm, heating lamp life less than 10% alarm
DG-65Z04-10A
The refrigeration efficiency is greatly improved
The evaporator is located in the freezing chamber, which directly cools the sample and improves the refrigeration efficiency, it can reach-60°C within 25 minutes
DG-65Z04-10A
IoT real-time management
Separate account, authority management, configuration record function, data traceability, real-time monitoring of equipment status
DG-65Z04-10A
High sublimation speed and high drying efficiency
Excellent temperature uniformity, free from external influences, more energy-saving and environment-friendly
Specifications
Model Ice Condenser Temperature (°C) Condensation Efficiency Power Supply (V/Hz) Weight (kg) Exterior Dimension (W*D*H)(mm)
DG-65Z04-10A -65 4kg/24h 220/50 145 (Equipment)+25 (Pump) 480*793*883 (without pump)
DG-65Z04-10AR -65/-85 (Optional) 4kg/24h 220/50 65 (Equipment)+25 (Pump) 480*793*730 (without pump)
