BRAND : DOCTROID

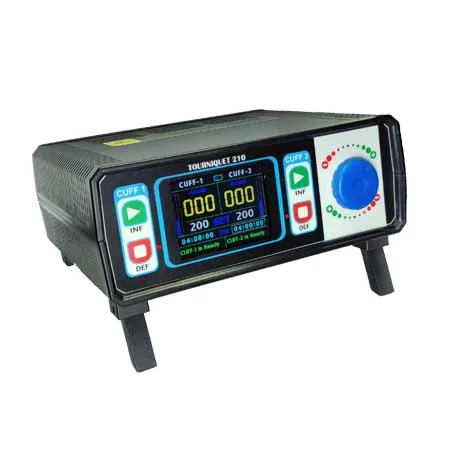

Fully Automatic Dual Cuff Tourniquet System
2.8″ TFT Color Display for clear visualization
Easy Pressure Adjustment using a rotary knob
Independent Cuff Control: Each cuff’s pressure can be set separately as needed
Autoclavable Silicone Cuff Set for optimal hygiene and durability
Category: Digital Tourniquet System
Our Digital Tourniquet Dual Cuff System is an advanced medical device designed for the precise control and monitoring of pneumatic tourniquets during surgical procedures. It plays a crucial role in managing blood flow by temporarily restricting circulation to a limb, thereby reducing bleeding and facilitating complex surgeries.
Key Features:
Digital Controls:
Equipped with electronic controls for accurate inflation and deflation, ensuring optimal pressure management during use.
Dual Ports:
Designed to operate two tourniquets simultaneously, ideal for procedures involving multiple limbs.
Pressure Monitoring:
Integrated pressure sensors continuously track the tourniquet pressure, ensuring it remains within the desired range.
Safety Features:
Includes built-in safety mechanisms and alarms to prevent over-inflation and potential complications.
User-Friendly Interface:
Features an intuitive interface that enables healthcare professionals to easily set and monitor tourniquet pressure.
Flexible Power Supply:
Operates on battery power or via an external power supply, offering versatility for various clinical environments.
Specification
Display & Control
Display: 2.8″ TFT color display for clear visualization of pressures and timers
Pressure Control: Rotary knob for easy pressure adjustments
Pressure & Inflation
Pressure Range: 50 to 500 mmHg (separate cuff settings for each port)
Inflation Mechanism: Motorized pump system for reliable inflation control
Pressure Resolution: ~±2–3 mmHg
Accuracy: ~±4–5 mmHg referenced to set pressure
Timing & Monitoring
Elapsed Time Display: MM:SS format (0–299 minutes) shown for each cuff separately
Continuous Monitoring: Pressure and time for both cuffs visible on display
Cuffs & Accessories
Cuff Type: Silicon, autoclavable cuffs with long straight tubing
Set Includes: Typically 2 cuffs + tubing (multiple sizes available)
Power & Portability
Power Input: 230 V AC, 50/60 Hz with built-in rechargeable battery charging circuit
Battery: Rechargeable battery support for short-term use during power interruption
Portable Design: Lightweight and easy to transport between OT and departments
Size & Weight
Dimensions: Approx. 205 (W) × 200 (L) × 75 (H) mm
Weight: Around 1.5–2 kg depending on configuration
Certifications
CE marked, ISO certified (ISO 9001:2015, ISO 13485:2013), WHO-GMP certified for safety and quality standards.
