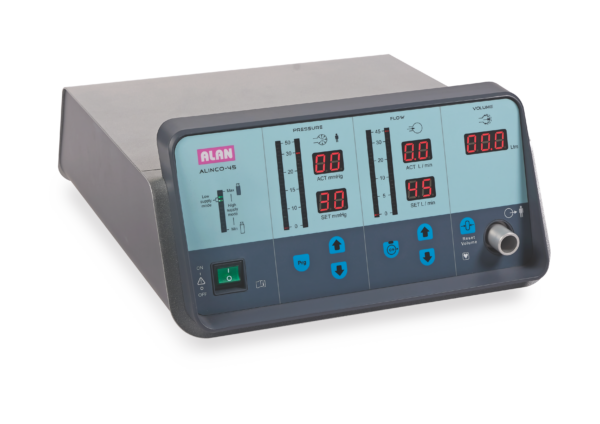

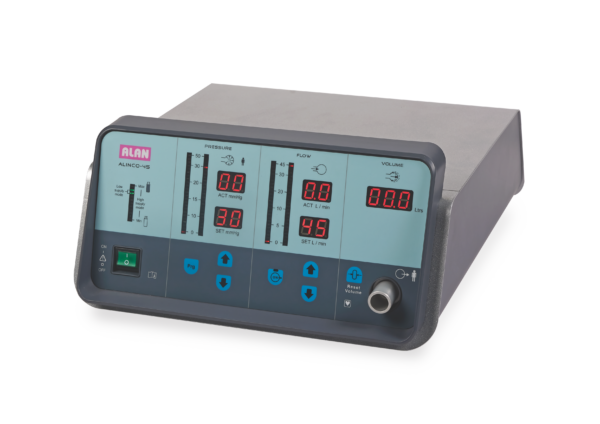

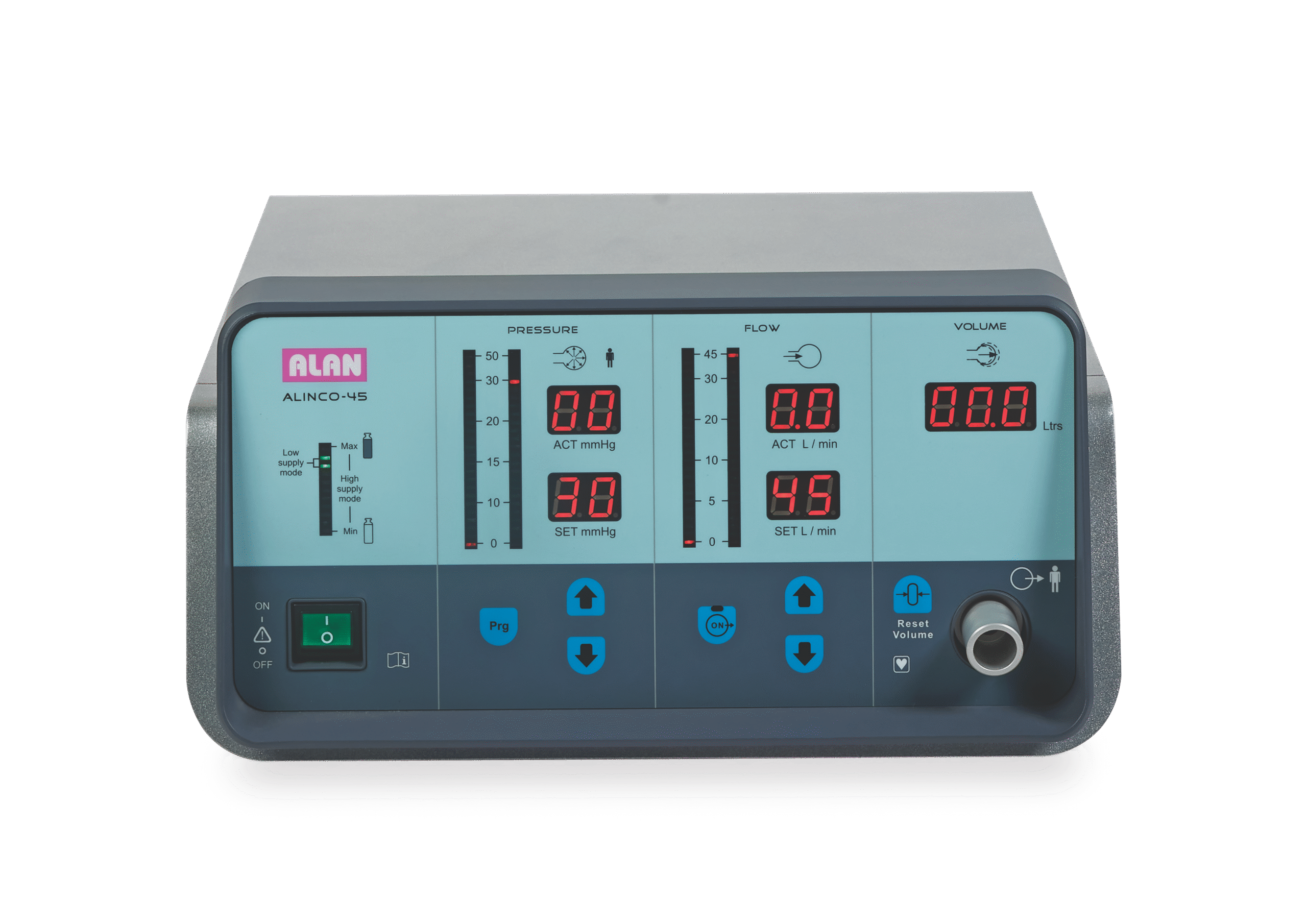

ALINCO – 45

BRAND : ALAN

GENERAL FEATURES :

Advanced micro controller based technology.
Ideal for all Laparoscopic surgeries including pediatric surgeries
Preheating gas mechanism to minimize the condition of Hypothermia
Independent display for set pressure and actual pressure
In bar graph and digital display
Independent display for set flow and actual flow in bar graph and digital display
Flow settable 0.1 to 45 LPM Pressure settable 1 to 30mmHg.
9 User program memories for different surgeries as per Surgeon’s preference.
Realtime pressure and flow control.
Power up selftest to ensure, unit healthiness. Easy flow “ start/stop ” control
Ergonomic design
Separate key for volume reset

TECHNICAL SPECIFICATIONS :

Input Supply  : 88 VAC – 275 VAC
Line Frequency  : 50Hz / 60 Hz
Max. Flow  : 45 Liters
Power Consumption  : 300 VA Max.
Input Fuse  : 3.15A T
Gas Type :  Co2 liquified
Inlet Pressure  : 70 bar max.
Dimensions (in mm) :  420(L) x 340(W) x 160(H)
Weight  : 7 Kg (max.)

Operating Parameters

Temperature range:+10° C to +40° C
Relative humidity:30% to 75% non-condensing
