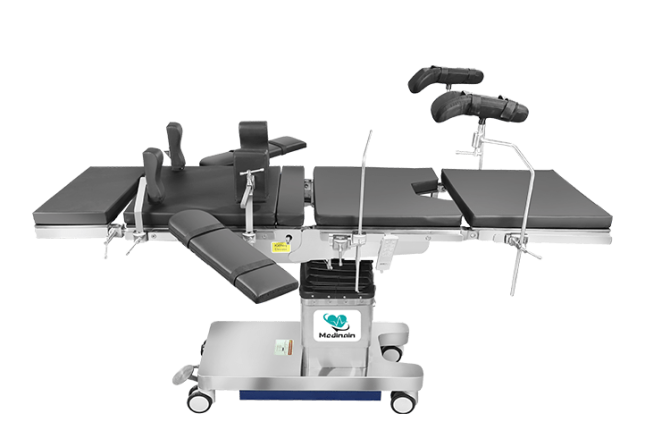

Advance Electric OT Table (ME-1500E)

BRAND : MEDINAIN

Features:-

Fully electrically operated table, five sections, radio-translucent table top with eccentric pillars and Die Compressed base.
Interchangeable head and leg sections (manually).
All positions operated through cable remote.
Electric floor locking. (Optional)
Inbuilt kidney bridge.
Auto leveling (zero function).
We are providing two Handsets. Additional fixed control panel provided on the table top, which can be used in case of failure of main hand set.
Indication of Battery Back provided in the hand set.
Handset is providing Dual Memory Function which can be set and reset.

Technical Specifications

Top Dimension  : L 1900mm x W 520mm
Height Adjustment : 750mm – 1000 mm
Trendelenbrug / Reverse :  30° / 25°
Lateral Tilt  : 20° / 20°
Kidney Elevator :  130 mm
Back Rest ( up / down ) :  60° / 25°
Leg Rest ( up / down ) :  15° / 90°
Head Rest ( up / down ) : 20° / 60°
Power Supply :  24V DC
Battery Backup :  2-3 Hours (optional)
Mains Voltage Capacity AC : 220V+10%50Hz
Patient Weight Capacity :  200 Kgs.
